Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery.

After extensive joint surgery, if a patient fails to move their joint the tissue around the joint will become stiff and scar tissue may form, resulting in a joint with limited range of motion. This often takes months of physical therapy to recover from. Continuous Passive Motion can help prevent this from ocurring.

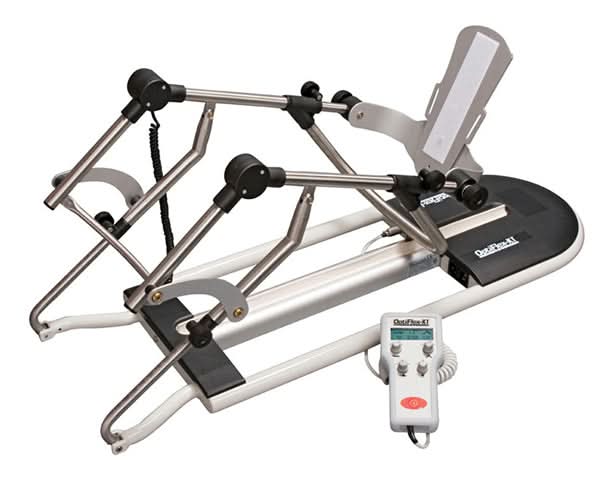

The OptiFlex-K1 Knee CPM is available with three different hand controls for maximum versatility and comes with one Patient Kit included.

Hand Controller Functions:
The OptiFlex K1 is available with three different hand controls, Classic, Standard and Comfort. Each offers a different level of functionality on the K1 CPM as shown below.

Function	Classic	Standard	Comfort
Key lock function:	Yes	Yes	Yes
Pauses:	Yes	Yes	Yes
Speed:	Yes	Yes	Yes
Timer:	No	Yes	Yes
Reverse on load:	No	Yes	Yes
Warm up protocol:	No	Yes	Yes
Default setting:	No	Yes	Yes
Transport setting:	No	Yes	Yes
Chip card selectable:	No	No	Yes
EROM repeat:	No	No	Yes
Stretch protocols:	No	No	Yes
Workout protocol:	No	No	Yes
Comfort protocol:	No	No	Yes
Therapy documentation:	No	No	Yes
EMS control:	No	No	Yes

Features

ROM -10 to 120
Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
Reversible footplate for shorter legs
Faster motor speed
Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
Only 38 inches (97 cm) long
Wide low-profile, closed-base frame for stability
Patient lockout feature
Two-year warranty

Technical Specifications

Knee Flexion: 120°
Knee Extension: -10°
Speed: 25° - 180°/minute
Pauses: 0 - 59 seconds
Force Reversal: 45 Kp of force* (built in)
Patient Height: 4 - 6.5 ft (1.2 - 2 m)
Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
Mains Power: 100V-240V, AC 50-60Hz
Unit Weight: 23 lb (10.4 kg)
Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
